Block of comparison (Comparator)
5
1
4
2
3
A comparator compares two analog signals applied to the inputs "I1" and "I2" in accordance with a selected condition and, in the case of this condition, the output Q the logical unit.
Condition types:
1. Equal ("I1" = "I2");
2. More ("I1" > "I2");
3. Less ("I1" < "I2");
4. Greater than or equal to ("I1" >= "I2");
5. Less than or equal to ("I1" <= "I2");

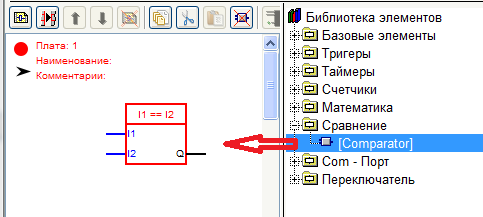

The compare unit in the diagram is created by dragging from the library elements.
Condition types:
1. Equal ("I1" = "I2");
2. More ("I1" > "I2");
3. Less ("I1" < "I2");
4. Greater than or equal to ("I1" >= "I2");
5. Less than or equal to ("I1" <= "I2");
The compare unit in the diagram is created by dragging from the library elements.

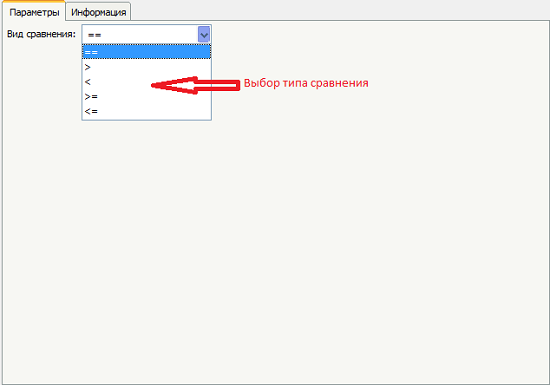

Select the type of comparison is performed editor block
