Branch "Block package folder"

This branch is intended for creating new blocks, groups, and folders of the multiblock block package.

In addition, a name for the folder is set on this branch.

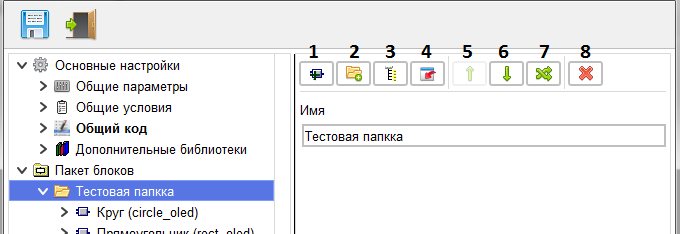

When you click the "New block" button»(1) a new block is created, and the transition to its main branch takes place.

When you click on the "New folder" button(2), a new folder is created, and you switch to its branch.

When you click on the "New group" button (3), a new group of blocks is created, and you go to the main branch of the created group.

When you click the "Import block or library" button (4), a window opens for selecting a block file or a block library. The block or library file selection field is loaded into the package.

Attention! Only blocks created in the old editor (Basic) are imported. If the downloaded library contains blocks created in the Professional editor, they will not be imported, but will be skipped.

Using the Up(5) and Down buttons»(6) the folder is moved within the parent folder.

Using the "Free movement" button»(7) you can move the folder to any location within the block package.

Using the "Delete folder" button (8), you can delete a folder, and its contents will be transferred to the parent folder.
